• Up to 128-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • Redundant power supply
Icon Label Description Type Size Download
pdf DS-96128NI-M16R Data Sheet pdf 643.6 KB Download

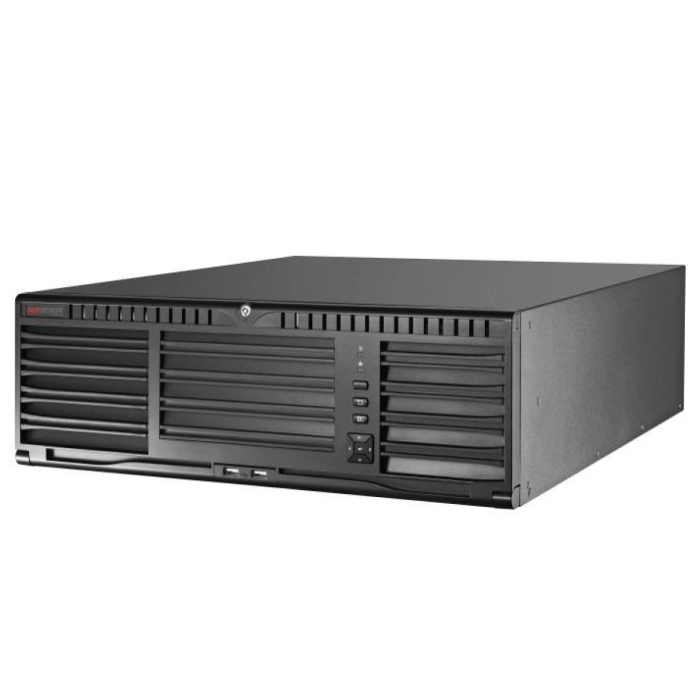

This 128 channel Hikvision NVR with RAID, it supports IP cameras up to 32MP resolution. It has 2 separate LAN interfaces, allowing you to create a independent Network using PoE switches to provide a soluton for large sites when separate PoE switches are required. This 3U Chassis NVR has the capacity to fit 16 x hard drives.
